Package Contents (Full Package)
Ready for BC Backcountry*- Full Kit

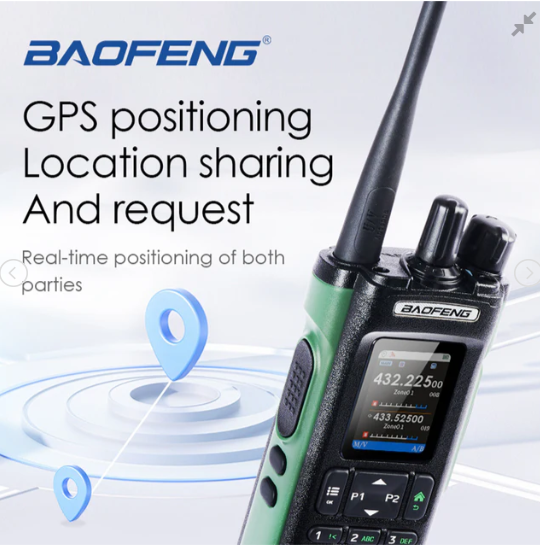

1 x Portable UV-5RM Plus GPS 10w Radio
1 x 2500mAh Li-ion Battery
1 x Short Antenna
1 x Belt Clip
1 x Wrist Strap

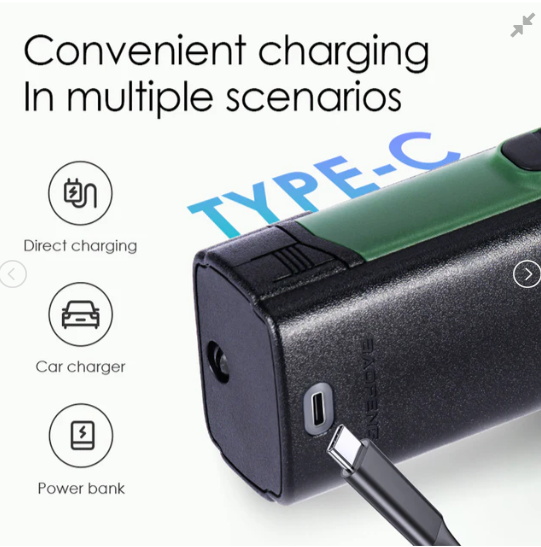

1 x Adapter
1 x DC Charge dock
1 x User's manual
1 x Waterproof Handheld Mic*-Full Kit
1 x Long Range Antenna* -Full Kit

General
Product Model UV-32 Channel Capacity 10 Zone/1000 Channels
Dimensions (H*W*L) 182×67×41mm (with battery pack) Weight (with antenna & battery) 350g
Operating Voltage 7.4V Channel Spacing 25KHz/12.5KHz
Frequency Stability ±2.5ppm Antenna Impedance 50Ω
Battery Capacity 2500mAh (Li-Ion) Battery Life (5-5-90 Duty Cycle) 20H (Middle Power)
Operating Temperature -10°C ~ +60°C Storage Temperature -10°C ~ +80°C
Receive Frequency Range & Transmit Frequency Range:

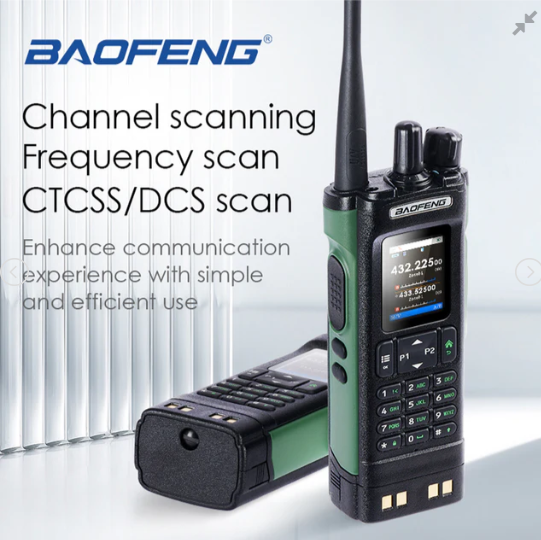

Scanning Receiver: FM65-108MHz/AM108-136MHz/VHF136-174MHz/220-260MHz,UHF350-390/400-520MHz
Transmit: 136-174MHz/220-260MHz/400-480MHz
Transmitter
FM Hum & Noise 40dB@12.5KHz, 45dB@25KHz Low RF Power Output ≤ 2W

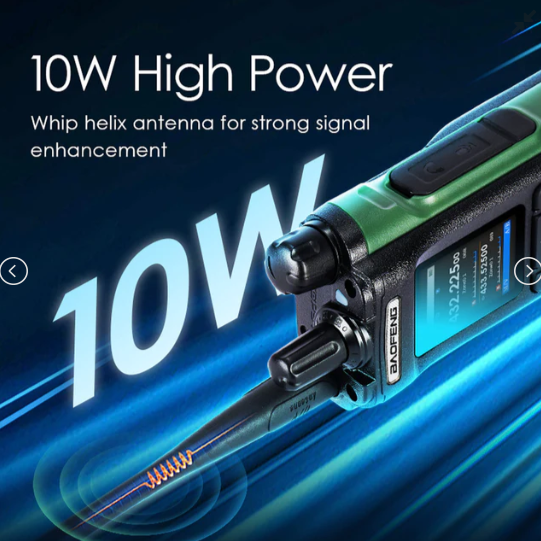

FM Modulation 11K0F3E@12.5KHz, 6K0F3E@25KHz High RF Power Output 10W
Adjacent Channel Power 60dB@12.5KHz, 70dB@25KHz Audio Response +1 ~ -3dB
Conducted/Radiated Emission -20dBm < 1GHz, -20dBm > 1GHz Audio Distortion ≤ 3%
Modulation Limiting ±2.5KHz@12.5KHz, ±5.0KHz@25KHz
Receiver
Analog Receiver Sensitivity 0.22μV (Typical) (12dB SIN AD) Rated Audio Power Output 1W @ 16Ω
Rated Audio Distortion ≤ 5% Audio Response +1 ~ -3dB
Inter-Modulation 65dB @ 12.5KHz / 25KHz Spurious Response Rejection 70dB
Conducted Spurious Emission -57dBm < 1GHz, -47dBm > 1GHz Adjacent Channel Selectivity 70dB / 60dB
Hum & Noise 45dB @ 12.5KHz, 40dB @ 25KHz

BackCountry Radios

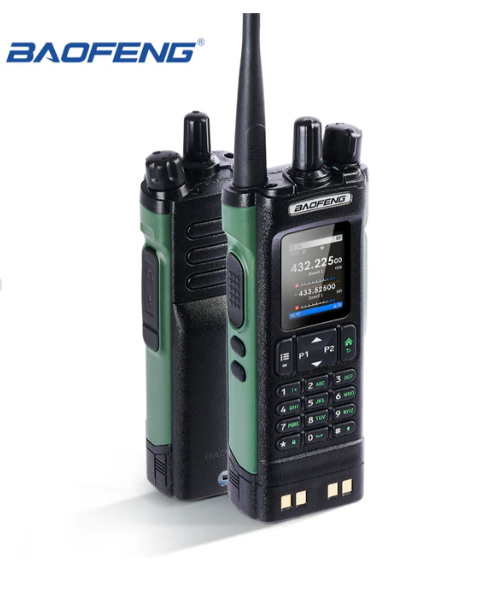

Baofeng - UV-32 10W GPS Bluetooth Multi Band 2 Way HAM Radio

SKU UV-32-B
$199.95
$159.99

Package Contents (Full Package)
Ready for BC Backcountry*- Full Kit

1 x Portable UV-5RM Plus GPS 10w Radio
1 x 2500mAh Li-ion Battery
1 x Short Antenna
1 x Belt Clip
1 x Wrist Strap
1 x Adapter
1 x DC Charge dock
1 x User's manual
1 x Waterproof Handheld Mic*-Full Kit
1 x Long Range Antenna* -Full Kit

General
Product Model UV-32 Channel Capacity 10 Zone/1000 Channels
Dimensions (H*W*L) 182×67×41mm (with battery pack) Weight (with antenna & battery) 350g
Operating Voltage 7.4V Channel Spacing 25KHz/12.5KHz
Frequency Stability ±2.5ppm Antenna Impedance 50Ω
Battery Capacity 2500mAh (Li-Ion) Battery Life (5-5-90 Duty Cycle) 20H (Middle Power)
Operating Temperature -10°C ~ +60°C Storage Temperature -10°C ~ +80°C
Receive Frequency Range & Transmit Frequency Range:
Scanning Receiver: FM65-108MHz/AM108-136MHz/VHF136-174MHz/220-260MHz,UHF350-390/400-520MHz
Transmit: 136-174MHz/220-260MHz/400-480MHz
Transmitter
FM Hum & Noise 40dB@12.5KHz, 45dB@25KHz Low RF Power Output ≤ 2W
FM Modulation 11K0F3E@12.5KHz, 6K0F3E@25KHz High RF Power Output 10W
Adjacent Channel Power 60dB@12.5KHz, 70dB@25KHz Audio Response +1 ~ -3dB
Conducted/Radiated Emission -20dBm < 1GHz, -20dBm > 1GHz Audio Distortion ≤ 3%
Modulation Limiting ±2.5KHz@12.5KHz, ±5.0KHz@25KHz
Receiver
Analog Receiver Sensitivity 0.22μV (Typical) (12dB SIN AD) Rated Audio Power Output 1W @ 16Ω
Rated Audio Distortion ≤ 5% Audio Response +1 ~ -3dB
Inter-Modulation 65dB @ 12.5KHz / 25KHz Spurious Response Rejection 70dB
Conducted Spurious Emission -57dBm < 1GHz, -47dBm > 1GHz Adjacent Channel Selectivity 70dB / 60dB
Hum & Noise 45dB @ 12.5KHz, 40dB @ 25KHz
$199.95
$159.99
Package:

Frequently Bought Together

Total price$439.84

Product Description

Package Contents (Full Package)
Ready for BC Backcountry*- Full Kit

1 x Portable UV-5RM Plus GPS 10w Radio
1 x 2500mAh Li-ion Battery
1 x Short Antenna
1 x Belt Clip
1 x Wrist Strap
1 x Adapter
1 x DC Charge dock
1 x User's manual
1 x Waterproof Handheld Mic*-Full Kit
1 x Long Range Antenna* -Full Kit

General
Product Model UV-32 Channel Capacity 10 Zone/1000 Channels
Dimensions (H*W*L) 182×67×41mm (with battery pack) Weight (with antenna & battery) 350g
Operating Voltage 7.4V Channel Spacing 25KHz/12.5KHz
Frequency Stability ±2.5ppm Antenna Impedance 50Ω
Battery Capacity 2500mAh (Li-Ion) Battery Life (5-5-90 Duty Cycle) 20H (Middle Power)
Operating Temperature -10°C ~ +60°C Storage Temperature -10°C ~ +80°C
Receive Frequency Range & Transmit Frequency Range:
Scanning Receiver: FM65-108MHz/AM108-136MHz/VHF136-174MHz/220-260MHz,UHF350-390/400-520MHz
Transmit: 136-174MHz/220-260MHz/400-480MHz
Transmitter
FM Hum & Noise 40dB@12.5KHz, 45dB@25KHz Low RF Power Output ≤ 2W
FM Modulation 11K0F3E@12.5KHz, 6K0F3E@25KHz High RF Power Output 10W
Adjacent Channel Power 60dB@12.5KHz, 70dB@25KHz Audio Response +1 ~ -3dB
Conducted/Radiated Emission -20dBm < 1GHz, -20dBm > 1GHz Audio Distortion ≤ 3%
Modulation Limiting ±2.5KHz@12.5KHz, ±5.0KHz@25KHz
Receiver
Analog Receiver Sensitivity 0.22μV (Typical) (12dB SIN AD) Rated Audio Power Output 1W @ 16Ω
Rated Audio Distortion ≤ 5% Audio Response +1 ~ -3dB
Inter-Modulation 65dB @ 12.5KHz / 25KHz Spurious Response Rejection 70dB
Conducted Spurious Emission -57dBm < 1GHz, -47dBm > 1GHz Adjacent Channel Selectivity 70dB / 60dB
Hum & Noise 45dB @ 12.5KHz, 40dB @ 25KHz
